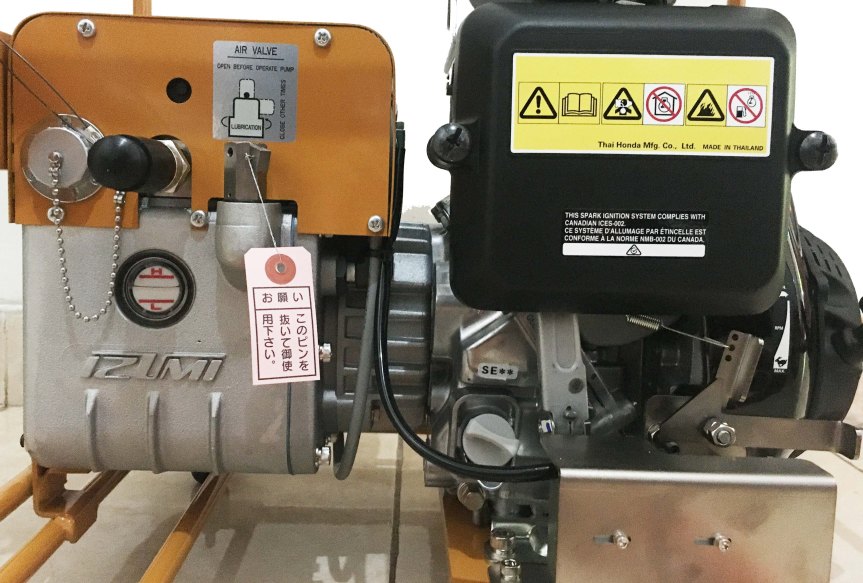

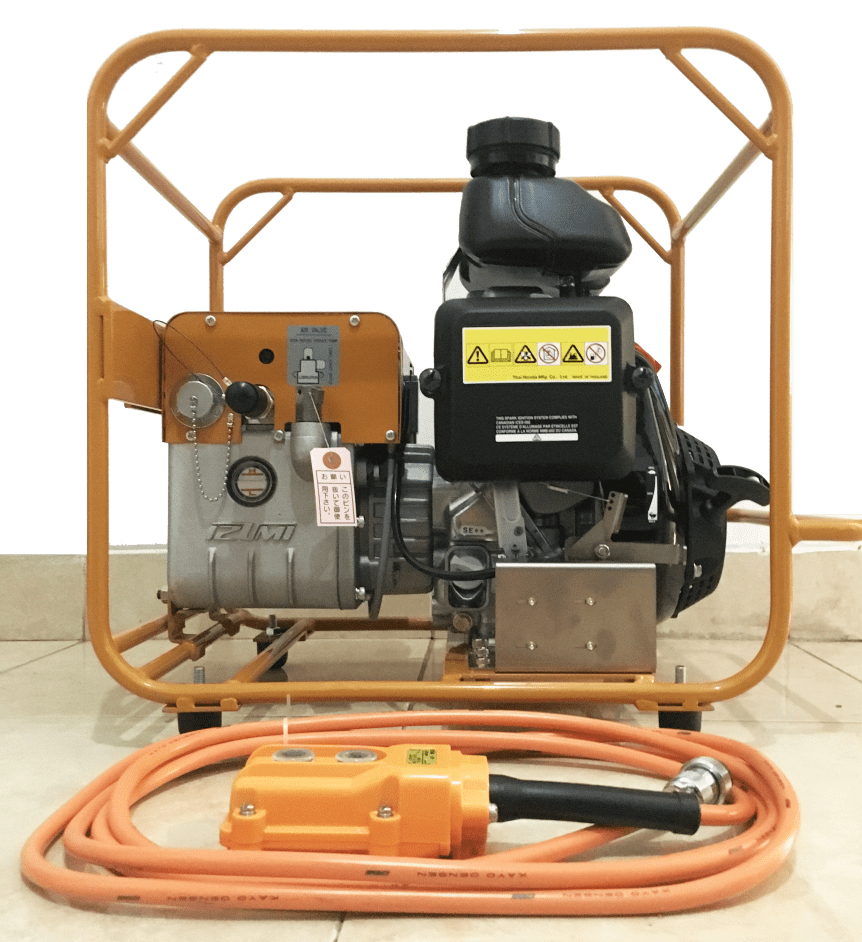

Hydraulic Pump IZUMI HPE-100S

Hydraulic Pump adalah suatu alat yang mengambil energy dari satu sumber (engine, electric motor, dll) dan mentransfer energy tersebut menjadi bentuk hydraulic

Spesifikasi :

• Model : HONDA GX100
• Type : Air Cooled 4-stroke single cylinder OHC petrol engine
• Cylinder Volume : 98.5 cc
• Output : 1.7kW / 3,600 rpm
• Engine oil : SJ grade SAE10W-30
• Fuel : Unleaded automobile gasoline
• Fuel tank capacity : 0.77L
• Spark plug : CR5HSB(NGK), U16FSR-UB(DENSO)

Hydraulic Pump

• High pressure stage : Pressure 68.5Mpa, Oil delivery 0.35L / min
• Low pressure stage : Pressure 14.5Mpa, Oil delivery 2.6L / min
• Hydraulic Oil : Esso Univis J-26 or equivalent grade

Dimensions

• Size (L x W x H) : 533 x 350 x 484 mm
• Dry weight : 34kg
• Gross weight : 34.5kg

Dowload Catalog Spesifikasi HPE-100S
