Conductor Cover

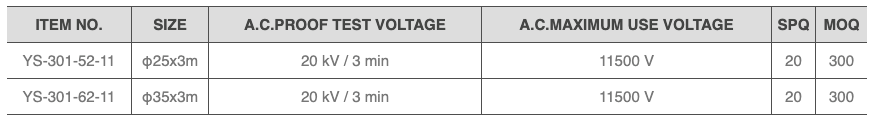

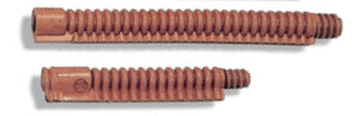

Rubber Insulating Line Hose For Jumper Wire

Rubber Insulating Line Hose For Jumper Wire digunakan sebagai perangkat pelindung portable untuk melindungi pekerjaan listrik dari Kontak yang tidak disengaja dengan konduktor listrik langsung, atau sirkuit.
Karena bagian ini dirancang dalam gulir, mudah dipasang dan dilepas dari kabel listrik.

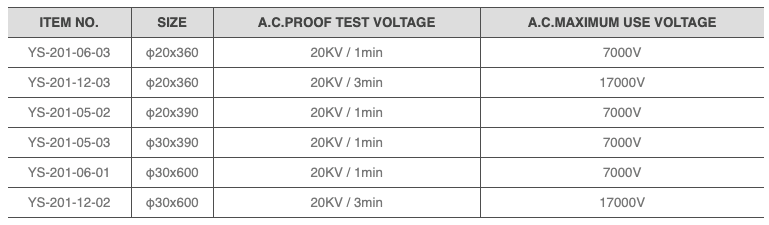

High Voltage Polyethylene Conductor Cover

High Voltage Polyethylene Conductor Cover digunakan untuk melindungi kawat dan konduktor. Penutup diletakkan di atas konduktor sementara atau setengah permanen untuk menghindari kemungkinan, dalam pekerjaan konstruksi listrik atau pemeliharaan saluran distribusi overhead. Penutup memiliki proterti isolasi listrik yang unggul dan daya tahan yang sangat baik. Seperti bagian dirancang dalam gulir, setengah meletakkan di atas kabel listrik. Selimut tidak keluar karena getaran badai dll.

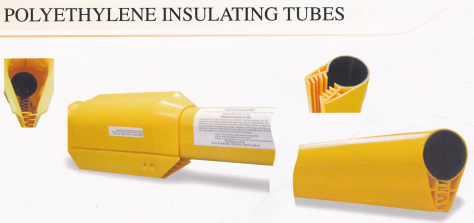

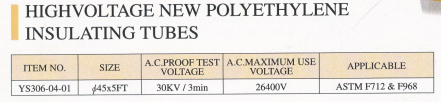

Polyethylene Insulating Tubes

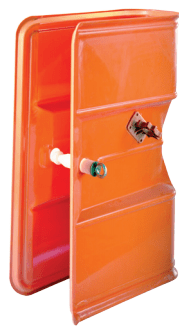

Cutout Covers 25 kV Phase-to-Phase

  • Features & Applications • Tested to ASTM F712
  • Protects linemen working near most open-type cutouts rated at 25kV or under
  • Will not fit over cutouts with linkbreak levers or similar devices
  • Can be placed over the cutout
  • Locking pin slips behind the cutout insulator over hanger bracket and into hole on opposite side of cover
  • Eyes on cover and locking pin allow installation with a Grip-All clampstick
  • Cover is made of orange high-impact ABS plastic
  • Several units can be nested together for convenience and space saving on truck

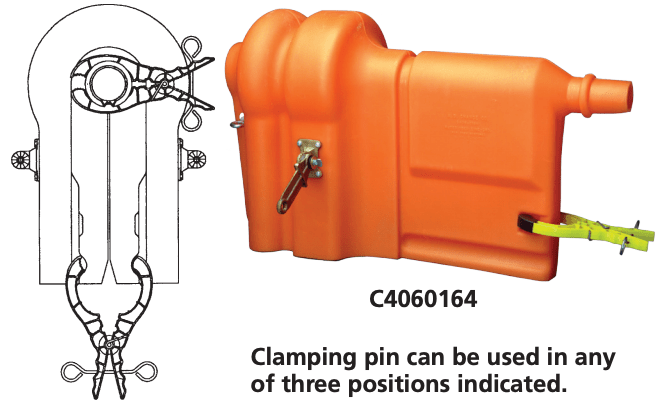

Deadend Covers 25 kV Phase-to-Phase

Features & Applications

  • Made of orange linear polyethylene
  •  Fits over maximum of two 10” dia. deadend insulators
  • End of cover will mate with Chance 25kV conductor covers or rubber line hose to extend protected area
  • Measures 34”L, 11” W and 12-1/2” from conductor to unit bottom
  • Split unit fits easily over the conductor and insulators
  • Split unit can be tightly clamped together using large hot stick clamp pin, which is similar to those used in securing rubber blankets
  • A Grip-All adapter (included) allows unit to be installed with a clampstick
  • Can Also be placed into position with rubber gloves and sleeves

Conductor and Insulator Covers 25 kV Phase-to-Phase

Features & Applications

  • Tested to ASTM F712
  • A versatile system of covering up a variety of configurations on distribution systems
  • Conductor and insulator units mate together to cover pin-type or post-type insulator construction
  • Can also be used with the deadend cover, shown on page 2402
  • Units virtually surround hot parts and hardware to give linemen extra protection when rubber gloving or using hot sticks
  • Covers will couple with major brands of rubber line hose and insulator covers of 25kV class
  • Both covers are made of high-density, bright orange polyethylene

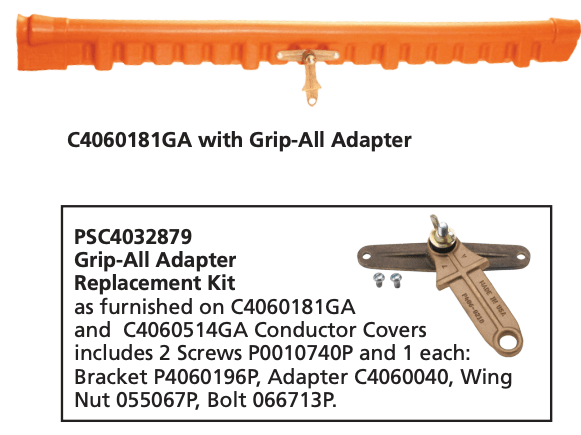

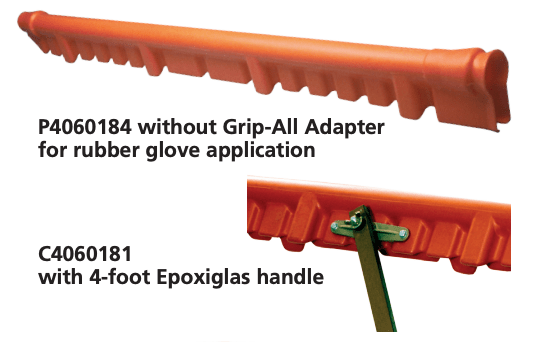

  • Conductor covers are 5’ long and are available with a Grip-All adapter for hot stick application or without adapter for rubber glove application
  • Also available with 4’ Epoxiglas® handles
  • Maximum conductor size: 666 kcmil ACSR

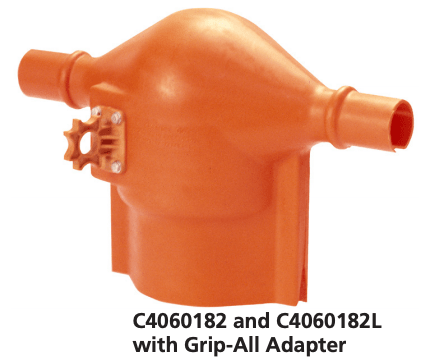

  • Insulator covers are 21” long and 8-1/2” wide
  • Available in two heights: 6” and 9” from conductor to cover base to fit different size insulators

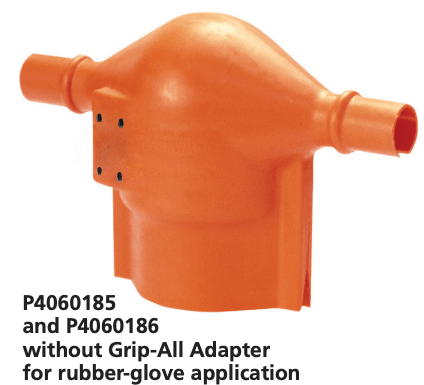

  • For use with Grip-All adapter for hot stick application or without adapter for rubber glove application
